Linered Container Filling and Discharge
Scorpio Bulk Container Unloading

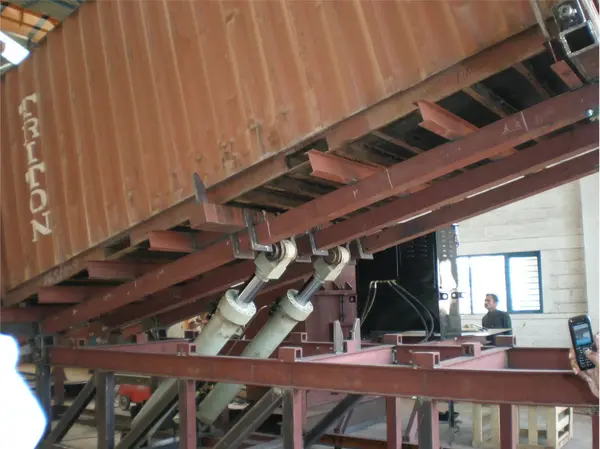

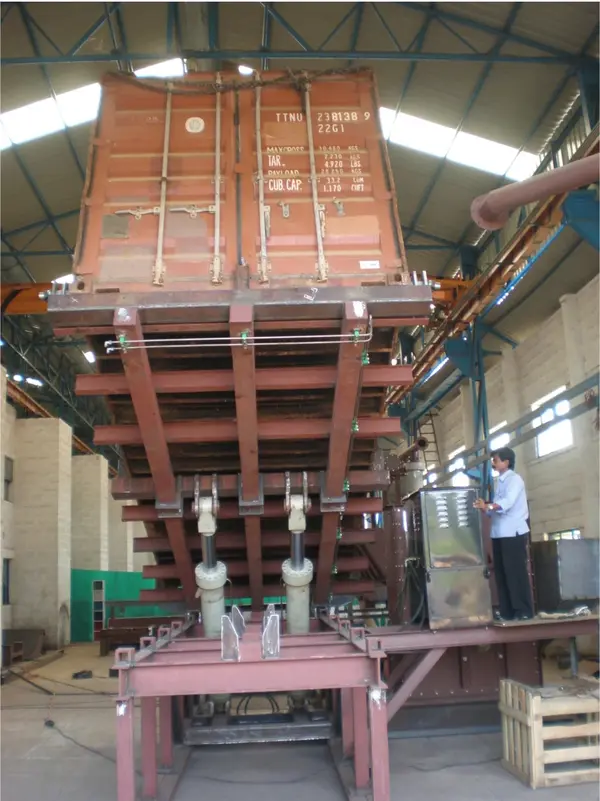

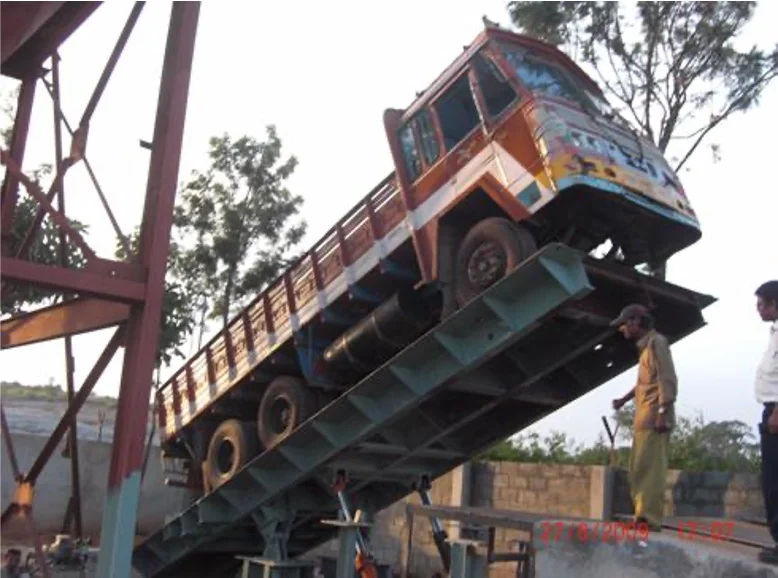

✅ Container is positioned on tilting platform
✅ Scorpio Structure is designed to hold the container in place

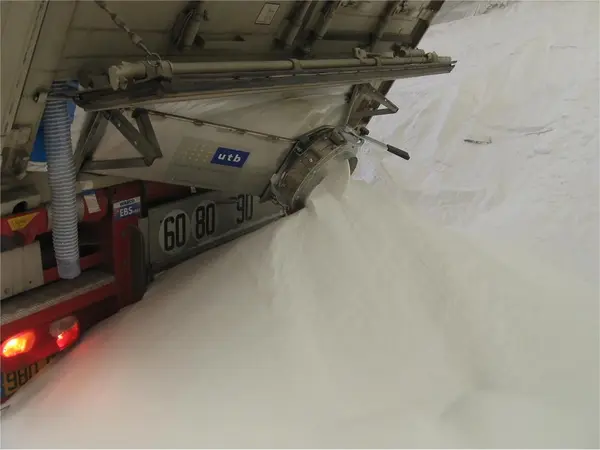

✅ Powder is discharged into storage silo

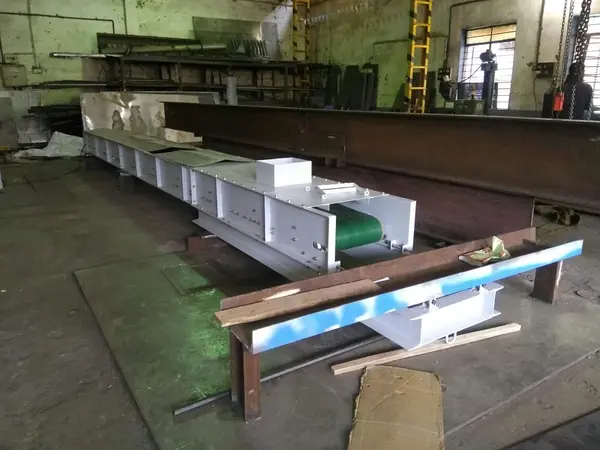

Scorpio Bulk Container Fillers
✅ Efficient
✅ Dust Free: The vent air during conveying is filtered through an inbuilt filter
✅ Self Contained
✅ Can fill containers in 20-40 Minutes

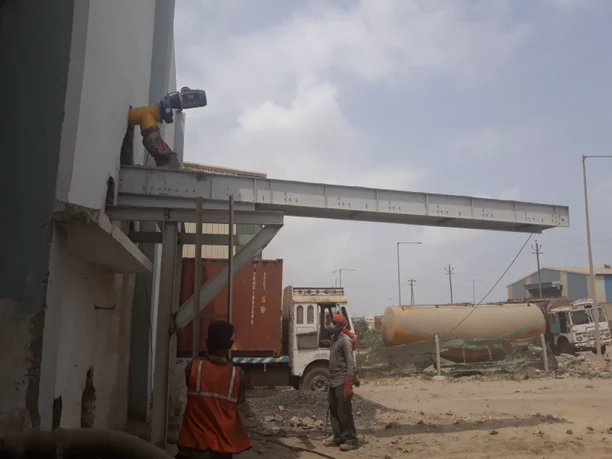

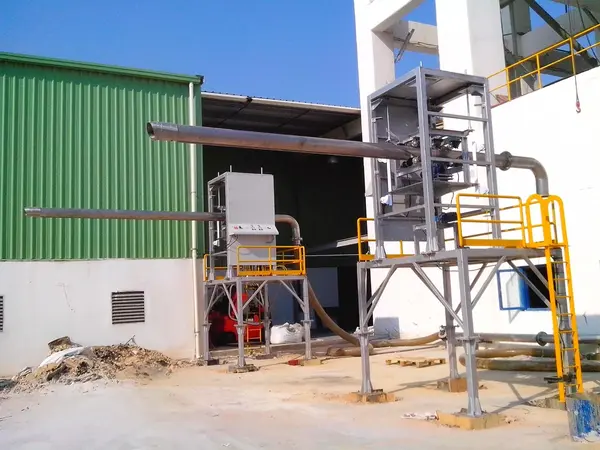

✅ Pneumatic/mechanical or gravity filling
Linered Container Filling and Discharge
THE PROBLEM: Most dry bulk materials in common use are invariably bagged in 25 kg., 50 kg. or 1 tonne Jumbo Bags. The filling, transportation and handling of these bags poses major problems in logistics since repeated handling is involved from manufacturing stage to usage point. Further there is major of environmental pollution due to dust during handling. Many dust control systems are ineffective due to the variables involved.
THE SOLUTION: Eliminate bags COMPLETELY and handle all dry materials in bulk. The use of standard 20 feet containers for domestic and international logistics is very common. For the dry bulk industry, it is possible to use these containers for movement of bulk material between manufacturer and user with the use of special plastic liners.

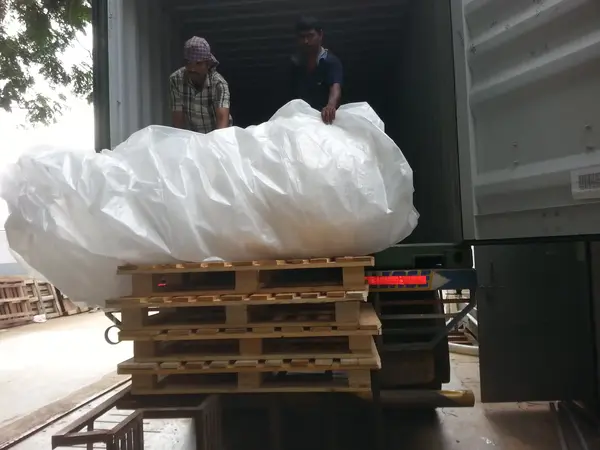

THE LINER: Standard 20 feet containers are used. A fabricated plastic liner is inserted into the container. The liner has a bulkhead at the rear of the container which has feed ports or holes for feeding material inside the liner in the container. The liner prevents the bulk material from contacting the inner sides of the container and also enables a fully sealed atmosphere for the bulk material during transport.
