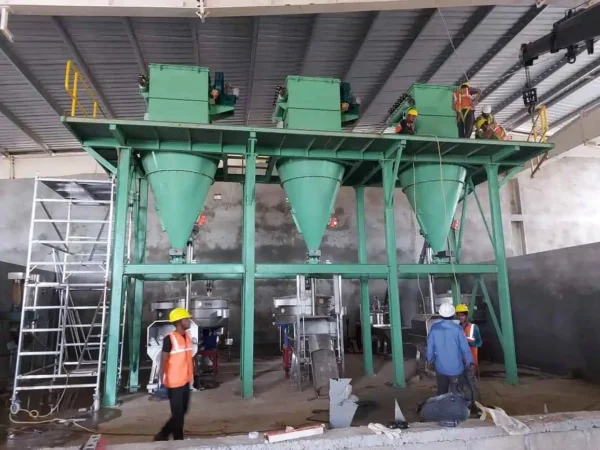

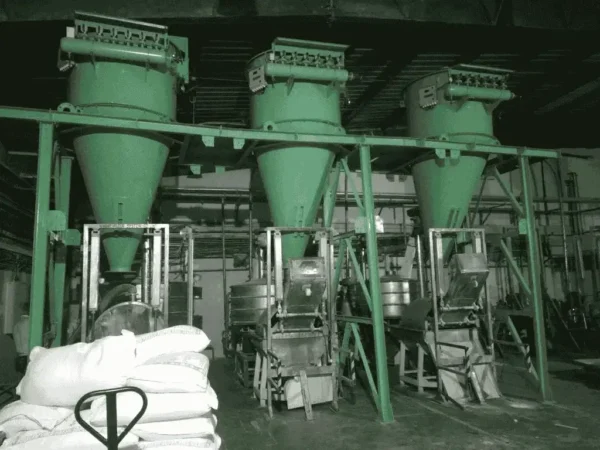

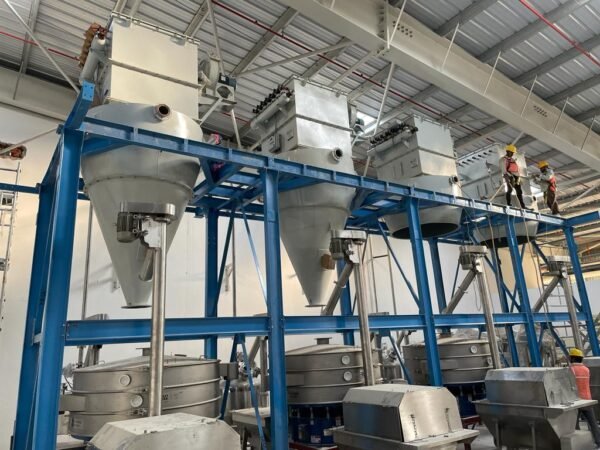

Filter Receivers are used in Pneumatic Conveying Systems as the final element to prevent any dust carry-over to the environment. The bag cleaning is done by an electronically controlled valve with timer. Filter Receivers are floor mounted with a suitable integral collection hopper and a discharge valve. Available in different sizes and material of construction depending on applications. Scorpio can manufacture top loading, bottom loading and side loading of the filter elements to suit critical site requirements. The dust particles down to 0.3 micron can be filtered by a special filter element
✅ Design and Selection of duct velocity, duct sizing, dampers, bag filters capacity, filtration media and fan specification for the material being handled based on their experience and considering the standard norms. Temperature rating upto 135 deg.C.
✅ Standalone type dust collectors of smaller capacity and modular type dust collector of larger capacity are available in IS2062 and in Stainless Steel constructions. In-built supports and maintenance platforms are provided in IS2062 construction.
✅ Bag filter is capable of handling up to 50 gm/Nm3 dust loads with guaranteed emission level of 10 mg/Nm3, this bag filter is capable of handling very fine & light dust at low pressure having density is less than 100 kg/m3.
✅ The filter media suitably selected based on the dust being handled, moisture and vapour content.
✅ Filter lengths available from 1000mm to 3000mm based on the dust collector configuration which are long lasting upto 5 years. Scorpio dust collectors are online Pulse jet cleaned type with adjustable sequential timer. Filter media will be Polyester / Polypropylene / Acrylic / PTFE coated with surface treatments of oil/water repellent, anti-static, etc.
✅ Rotary Airlocks with adjustable vane tips are used for dust discharge, designed to operate under higher vacuum. Screw dischargers are used for high capacity dust collectors.
✅ The dust collection system will have its own control panel with suitable starter.
FAQ
1: What is a dust collection and filter receiver system?
Dust collection and filter receiver systems capture airborne particles during bulk material handling, ensuring clean air, worker safety, and compliance with regulations.
2: Why is dust collection important in bulk material handling?
Proper dust collection prevents environmental contamination, reduces health hazards for workers, improves air quality, and protects equipment from dust buildup.
3: What materials generate dust that requires filtration?
Materials like cement, powders, grains, chemicals, minerals, food ingredients, and pharmaceuticals often generate dust during conveying, mixing, or processing.
4: How do filter receivers work in pneumatic conveying systems?
Filter receivers separate conveyed material from the conveying air stream, allowing the air to exit while the material continues through the process.
5: Can Scorpio BMH customize dust collection and filter receiver systems?
Yes, Scorpio BMH designs tailored solutions based on material characteristics, system capacity, process layout, and dust control requirements.
6: What industries require dust collection systems?
Industries include cement, food processing, pharmaceuticals, chemicals, plastics, power plants, and mineral processing — any application with airborne particulate.
7: How often should dust collection filters be maintained?
Filter maintenance depends on operating conditions, but regular inspections and cleaning help maintain efficiency and prevent system blockages.
8: Can dust collection systems be integrated into existing plants?
Yes, Scorpio BMH offers retrofitting and integration solutions to incorporate dust collection and filtration into existing bulk material handling systems.
